Availability:In Stock

IROAD OBDII Power Cable

The IROAD OBD-II Power Cable, is tailored for Electric, Non-Electric, and Hybrid Vehicles. Easily plug it into the OBD terminal to activate parking recording with IROAD dash cams, offering a convenient, plug-and-play solution for parking mode.

With its built-in Low Voltage cut-off at 11.2V, the IROAD OBD-II cable integrates with your dash cam’s voltage cut-off, usually set at a higher threshold. Parking mode is initiated shortly after turning off the vehicle, and in some models, the vehicle needs to be stationary for 5 minutes.

Status LED
Recording Mode Switch (S: Driving Mode Only / P: Driving & Parking Mode)
Overcurrent shutdown (Minimum 3.4A)
Stop & Go Technology Support
Compatibility with Petrol, Hybrid and Electric Vehicles
Compatible with 12volt and 24volt Vehicles

$49.00

Download Brochure

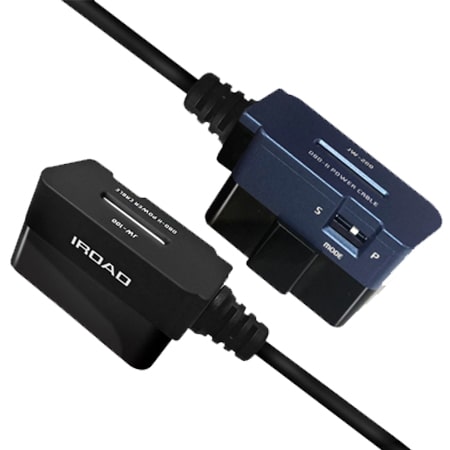

IROAD OBDII Power Cable

Select Section

DASH CAMERA DEDICATED POWER SUPPLY CABLE

Stable Power Supply

IROAD DEDICATED POWER CABLE 'OPC(IROAD OBDII Power Cable)' is easier to install dash camera by connecting directly to the OBD terminal without damaging the wiring of the vehicle. It protects the vehicle more safely with overcurrent cut-off circuit.

Set Recording Mode

CHANGEABLE RECORDING MODE BY SWITCH CONTROL IOPC(IROAD OBDII Power Cable) built-in switch allows setting the recording mode at all times. – S:Driving mode only – P:Driving & Parking mode

Specification

Product

IROAD OBDII Power Cable

Model

IM-300

Manufacturer

Jaewoncnc Co., Ltd

Country of Origin

Republic of Korea

Input Voltage

DC 12V ~24V

Output Voltage

DC 12V ~24V / Max 2A

Length

Operating Temperature

-40°c ~ 85°c

Overcurrent Cut-off

Min 3.4A

KC Certification

R-REM-JWW-IROAD-OBDII

Reviews

There are no reviews yet.

Be the first to review “IROAD OBDII Power Cable”

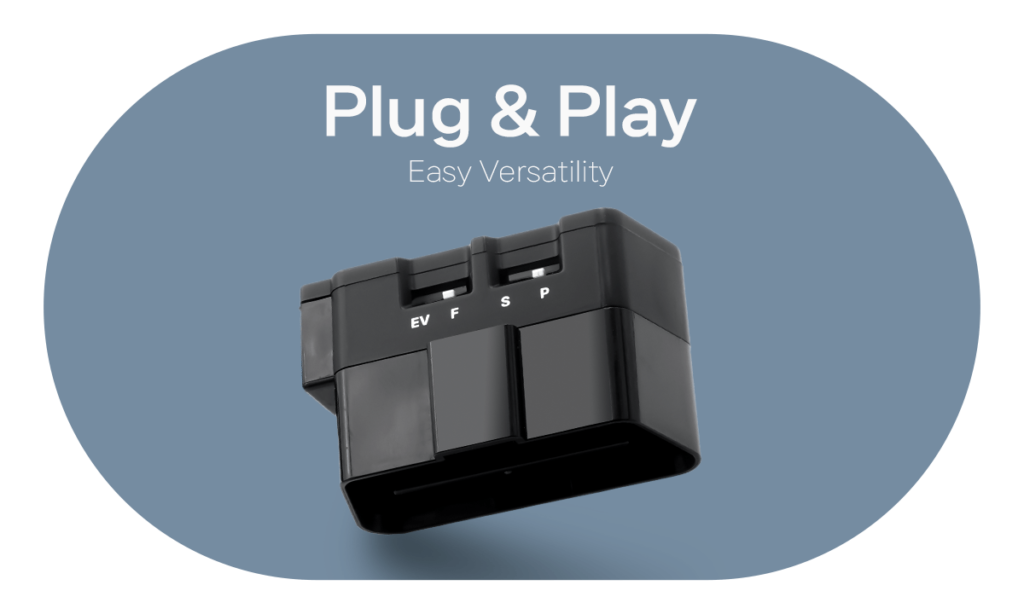

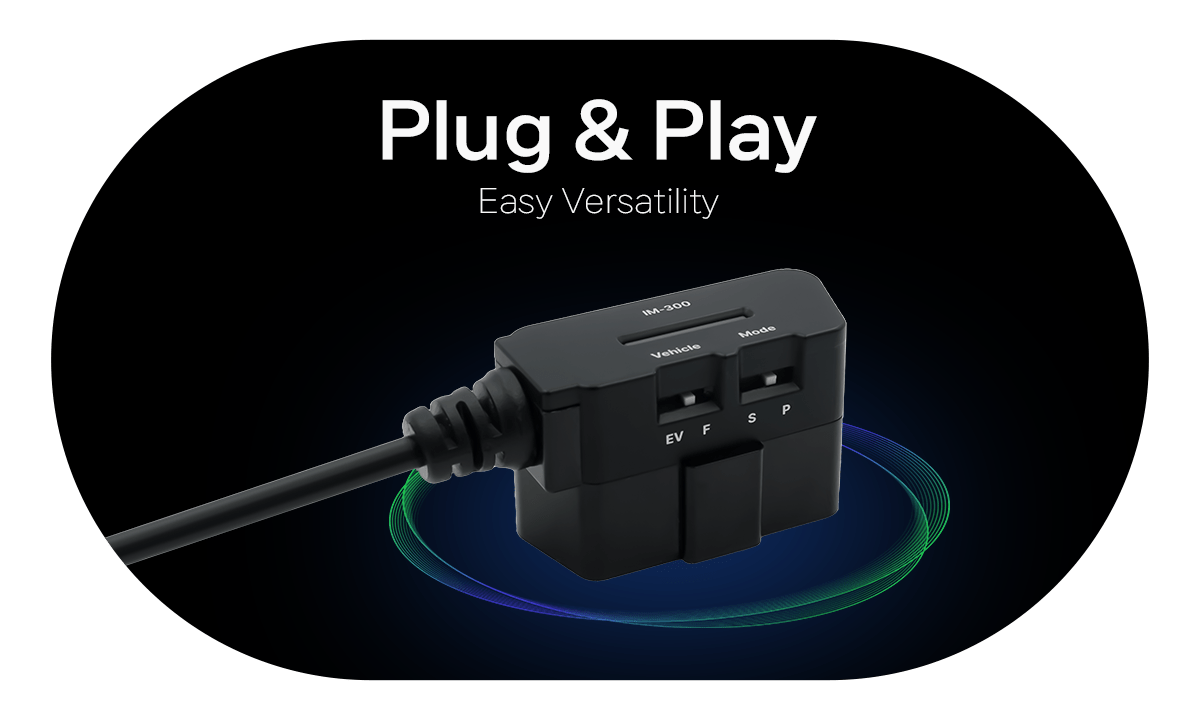

Easy to Install, Plug and Play

IROAD OBD Power Cable 2nd Generation IM-300

IM-300 offers an easier Plug & Play power option for installing a dash camera. By connecting directly to the vehicle’s OBDII port, it reduces the risk of damaging the vehicle’s wiring. It also provides better protection for the vehicle with its overcurrent cut-off circuit design.

Feature

Plug, Play & Forget

The IM-300 OBDII Power Cable is a Plug, Play & Forget alternative to the traditional dash cam hardwiring cable. With a straightforward, quick setup, anyone can install a dash cam using the IM-300, without needing professional installation services.

ONE cable for ALL vehicles

EV: EVs | F: Fuel & Hybrid

*The IM-300 is also compatible with 24V vehicles (trucks or commercial vehicles).

Parking Mode Enabled

Just like the traditional hardwiring fuse cable, the OBDII power cable also enables 24/7 Parking Mode recording. Through a Recording Mode switch on the cable’s plug connector, users can choose to turn ON/OFF the parking mode recording capability:

S: Driving Mode Only | P: Driving & Parking Mode

OBDII Power Cable

What is the IROAD OBD Cable?

An OBD (on-board diagnostics) cable for dash cams provides a simpler and more convenient method for parking-mode recording over the traditional fusebox hardwiring method. All vehicles manufactured since the mid-to-late 1990s have OBD ports and thus all modern vehicles fit universally for OBD cables.

The IROAD OBD cable is compatible with all vehicles with OBD ports, as well as with all IROAD dash cam models. Instead of using a hardwire kit to connect to the vehicle’s fusebox, which can sometimes be a pain as the location of the fusebox can differ greatly between vehicles, the OBD cable connects to the OBD port which is almost always found on the driver’s side near and around the steering wheel column.

Once plugged in, the IROAD OBD cable provides power to the dash cam both when the vehicle is on and when the vehicle is off, thus enabling parking-mode
How the IROAD OBD Cable Works?

The IROAD OBD cable has two switches on its side – “S”, which stands for Standard, and “P”, which stands for Parking. Having this in the S position will mean that power will cut off when the car is off, and setting this to the P position will allow the OBD cable to continue drawing power when the vehicle is off.

Thus, if parking-mode recording is desired, simply leave this to the P position. The voltage and timer cutoff settings can all be adjusted in the IROAD viewer or IROAD smartphone app.

We currently sell two versions of the IROAD OBD-II Cable, one for non-electric/hybrid vehicles, and the other for electric vehicles.

Electric Vehicle

IOPC JW-200 IS DESIGNED PERFECTLY TO SUPPORT ELECTRIC VEHICLES

LED

Verify operation with LED

Set Recording Mode

Switching S / P

Overcurrent Cut-off

Designed circuit to protect overcurrent

Built-in G-sensor

G Sensor and voltage driven scenario

Stop & Go Supporting

Operating on STOP & GO vehicles

Electric

The ACC function works on all vehicles (Especially parking mode)
