Availability:In Stock

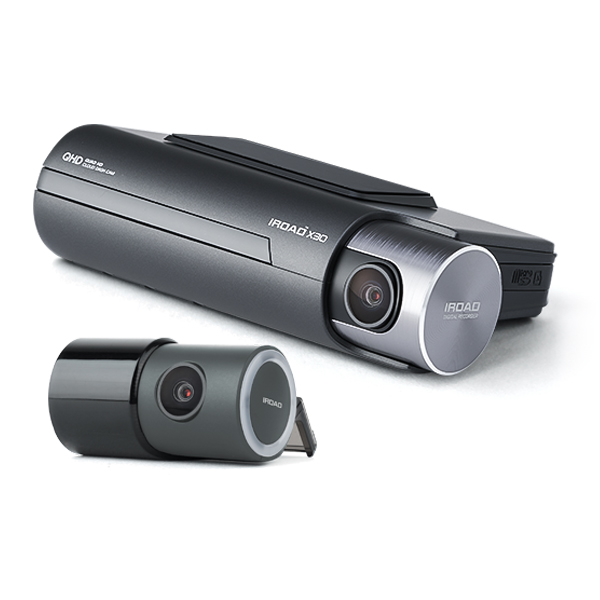

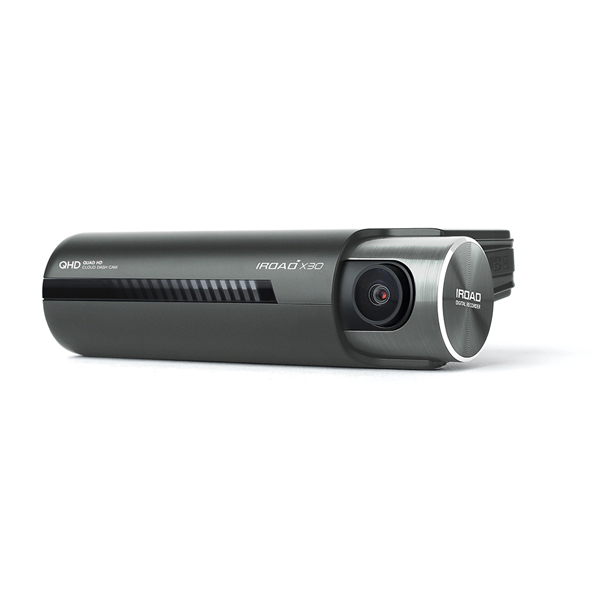

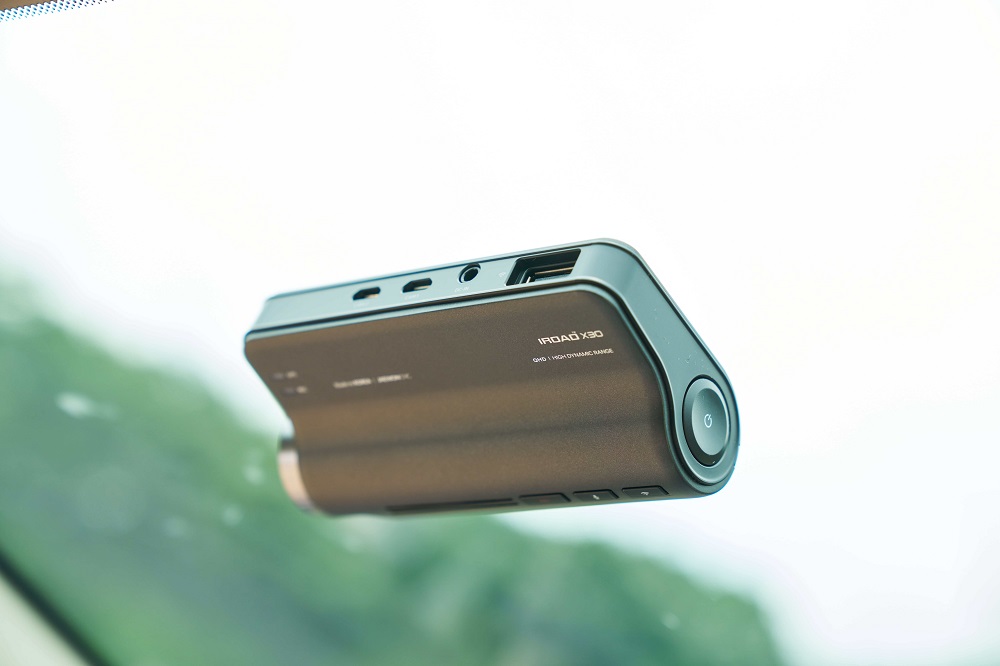

IROAD X30 Dash Camera

Experience comprehensive surveillance with the X30 3-Channel Cloud Dash Cam. Choose between 2-channel (front and rear), 3-channel (front/interior/rear), or 3-channel (front/interior/waterproof external) configurations. Optional cloud connectivity and Sony STARVIS sensors on both front and rear cameras provide advanced features.

  • 2ch or 3ch Dash Camera Solution
  • 2k QHD Sony Starvis image sensor
  • 155º viewing angle (f)
  • GPS / Wifi / ADAS
  • 3yr Warranty

$839.00 – $1,312.00

Download Brochure
IROAD X30 Dash Camera

Key Features

  • 2K QHD
  • 155º Wide Angle
  • Sony Starvis
  • 2Ch and 3Ch options
  • Time Lapse
  • X-Vision
  • Wifi
  • ICloud Capable
QUAD HIGH DEFINITION VIDEO QUALITY

1440P Quad HD Resolution

The IROAD X30 captures 1440p QHD front and 1080p FHD rear recording, providing four times more clarity than standard HD resolution. Its 2560x1440P resolution with 5.0M pixels and Sony IMX335 sensor delivers clearer and sharper images with significantly enhanced video quality, even in low-light conditions, and with little-to-no over-exposure across the entire image, makes it an excellent choice for day and night use.

High-quality Footage

By applying the Sony Stavis sensor to both the front and rear cameras of the IROAD X30, the image quality is significantly enhanced, particularly during nighttime recording. The sensor delivers clearer and more vivid colors in QHD images, ensuring superior image quality in low-light conditions. It’s worth noting that the front camera records in QHD, while the rear camera records in FHD, providing you with clear and detailed footage from both angles.

Impact & Motion Detection

X30 will automatically start an Event recording when motion or impact is detected during parking mode, as well as when impact is detected while driving.
Event files are saved separately and can be viewed through both PC Viewer and the IROAD Mobile App.

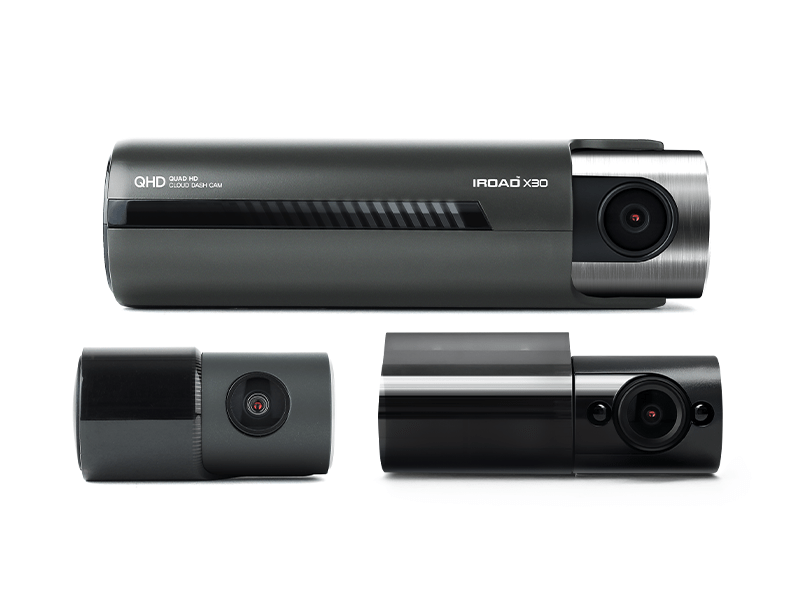

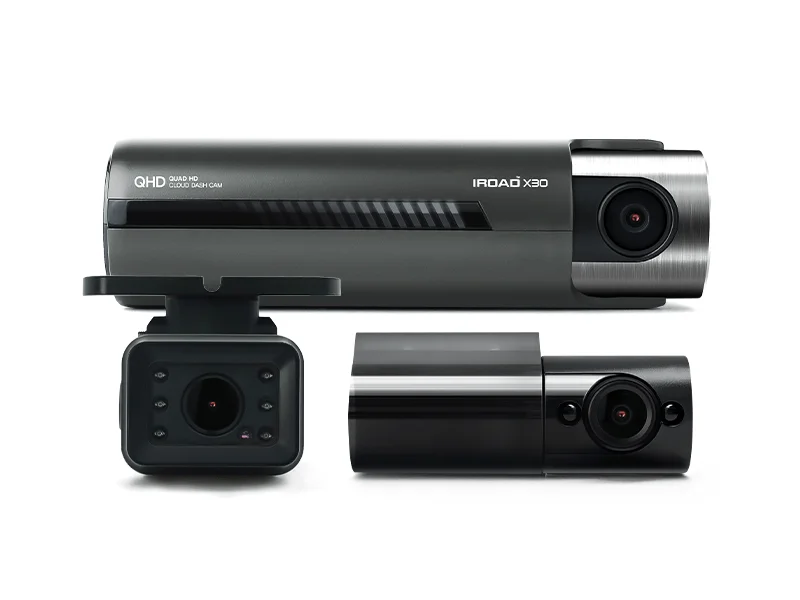

Truck/RV Recommended Option 3-channel (Front+interior+exterior)

The Exterior Waterproof Rear Camera is the best 3rd channel choice for vehicles with no rear windshield, such as large commercial vehicles or RVs and campervans The. 20m length cable ensures a comfortable installation of the camera, while the IP69K IP rating proves its high resistance to external environment factors (dust, moisture, liquids etc.) The infrared LEDs ensure clear recordings even in low-light environments With the FHD 140″ wide angle recording, the Exterior Waterproof Rear camera can be used not only to keep watch on the road behind, but it can prove useful to fleet managers wishing to monitor freight loading/unloading remotely. Remote monitoring can be done through the Cloud capabilities and online platform.

IROAD PC Viewer

Detailed Settings And Footage Information

[Supported] Windows / Mac

The intuitive and easy-to-use interface of IROAD PC X-VIEW offers a simple and convenient way to watch your recorded videos on your PC or Mac. You can playback and download recorded videos, as well as check your route history and driving speed data.


Time Lapse

Experience continuous Parking Mode recording for a long time with IROAD Time Lapse.
Time Lapse is a low-capacity recording method that minimizes the storage space by compressing and saving at 1fps while in Parking Mode.
However, when an impact or motion is detected during parking, X30 automatically switches to recording at 10fps to provide clearer images of the important moments.

2X More Recording Time

NO MORE WORRIES ABOUT STORAGE

PARKING MODE NORMAL TIME LAPSE
CAPACITY 32GB 32GB
FPS 10 fps 1 fps
RECORDING TIME About 7H About 24H

IROAD DASH CAM X30

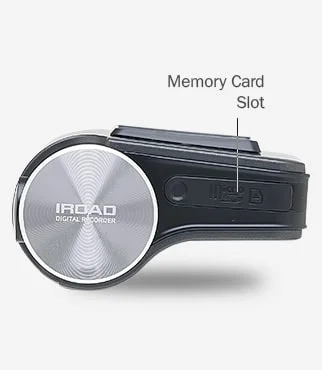

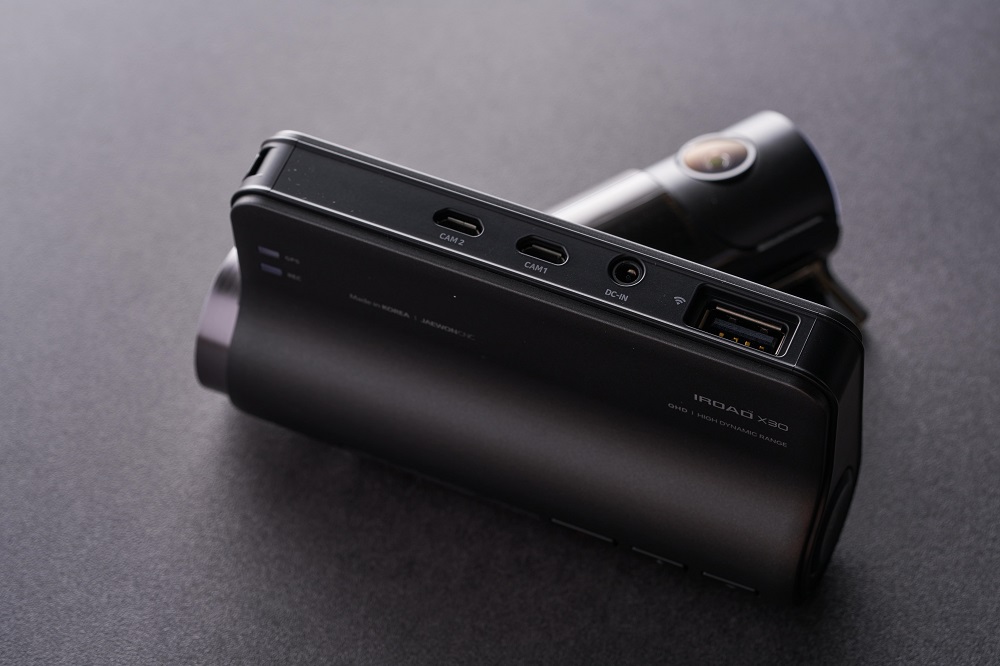

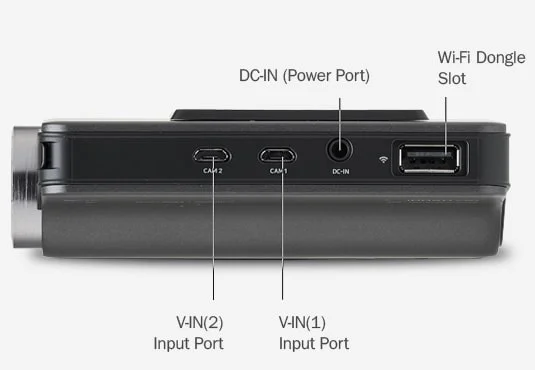

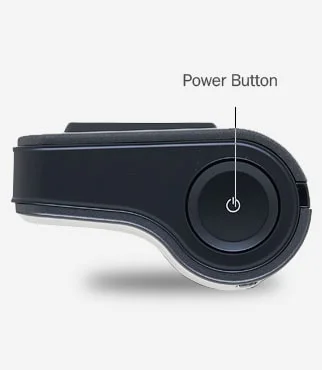

About The Device

About Device
About Device
About Device
About Device
About Device

Specifications

RESOLUTION / FRAME RATE

Front-1440p Quad HD @ 30fps / Rear1080p Full HD @ 30fps,
* Time-Lapse(Parking Mode) @ 1fps
* Time-Lapse(Parking Event) @ 10fps
* Frame rate may vary during Wi-Fi streaming.

CHANNEL

3Channel: IROAD X30 / Interior IR Cam: 1080p Full HD / External Waterproof Cam: 1080p Full HD

IMAGE SENSOR

Front: Sony STARVIS(IMX335) Sensor / Rear: Sony STARVIS(IMX307) Sensor
* Interior: 2.0 megapixels Sensor
* External: Sony STARVIS(IMX307) Sensor

VIEWING ANGLE

Front & Rear: Diagonal 155°
* Interior: Diagonal 140°
* External: Diagonal 140°

GPS

Built-in GPS

CONNECTIVITY

External Wi-Fi (2.4 GHz) & Bluetooth

IMPACT SENSOR

3-Axis Accelerometer G-Sensor (3D, ±3G)

ADAS 2.0

LDWS(Lane Departure Warning System) FVDW(Front Vehicle Departure Warning) FCWS(Forward Collision) Warning System)

RECORDING MODES

Driving Recording (Continuous), Impact Recording Parking Mode (Impact Recording + Motion Detection / Time-lapse) Manual Recording, Audio Recording

VIDEO / AUDIO

MP4 / ADPCM

FORMAT FREE 2.0

YES (Adaptive)

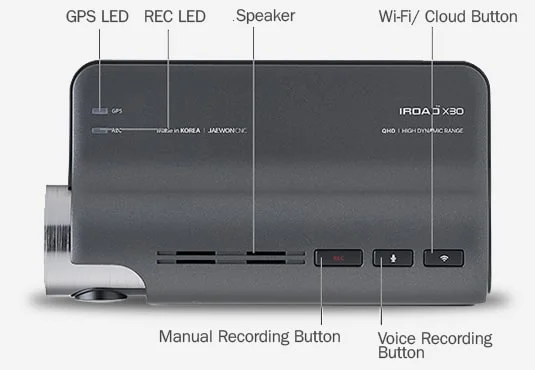

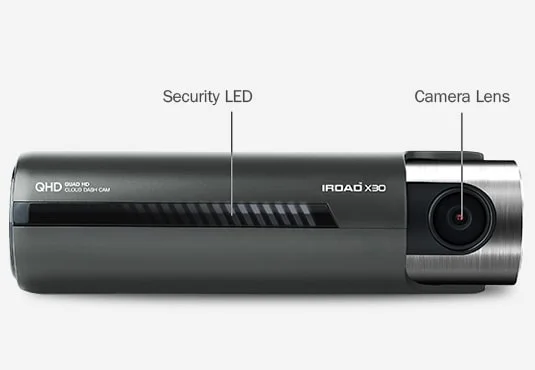

LED INDICATORS

Front: Rec LED, GPS LED, Wi-Fi LED, Security LED Rear: Security LED

OPERATION TEMPERATURE

-10℃ – 60℃

RANGE TEMPERATURE

-20℃ – 80℃

HIGH TEMP CUT OFF

Approx. 70℃

INPUT POWER

DC 12V~24V

CERTIFICATIONS

FCC, CE, RoHS, IC, E-MARK, WEEE

PRODUCT DIMENSIONS

Front: W 115 mm x H 65mm x D 33 mm (Weight 100g) Rear: W 60mm x H 28 mm (Weight 30g)

SOFTWARE

IROAD VIEWER (PC) - Windows 7 or higher and Mac (macOS 10.12) or higher

APPLICATION

IROAD (Mobile) - Android 7.0, iOS 13.0 or higher : Firmware update supported

Fc Logo

IROAD DASH CAM X30

Package Contents

Front Camera
Front Camera
Rear Camera
Rear Camera
Wi-Fi Dongle
Wi-Fi Dongle
MicroSD Card
MicroSD Card
Uninterrupted Fuse Cable
Uninterrupted Fuse Cable
Rear Camera Cable
Rear Camera Cable
Quick Guide
Quick Guide
Mount with 3M tape(1ea)
Mount with 3M tape(1ea)

Reviews

Reviews

There are no reviews yet.

Be the first to review “IROAD X30 Dash Camera”

Your email address will not be published. Required fields are marked *

Sony STARVIS IMAGE SENSOR

A Sony Starvis

IROAD X30 is equipped with a premium Sony STARVIS Image Sensor which guarantees ultimate video sharpness and high nighttime footage quality.
This image sensor is able to provide recordings much brighter and cleaner compared to seeing with bare eyes, even in low light conditions.

Normal

Normal

Starvis Images sensor

HIGH DYNAMIC RANGE

Real HDR

ALWAYS SUPPORT CLEAR VIDEO WITH APPLICATION OF FRONT & REAR HDR
Real HDR technology is integrated to eliminate light blurring while driving at night, producing clear and vivid recordings even in challenging lighting conditions such as backlighting and tunnels. This advanced feature allows the IROAD X30 to accurately capture the entire dynamic range of a scene, resulting in improved clarity and contrast across the entire video. This makes it an excellent choice for drivers who need reliable and high-quality footage, regardless of the lighting conditions.

HDR OFF

HDR ON

Storage Time By Memory Card

[Resolution]

Front : Front:1440p QHD / Rear:1080p FHD

[Frame Rate]
  • Driving mode : 30fps
  • Parking mode(Event/Motion) : 10fps
  • Parking mode(Timelapse) : 1fps

  • A = Driving mode 100% @30fps

    • 32GB : About 3H
    • 64GB : About 6H
    • 128GB : About 12H
    • 256GB : About 24H

  • B = Parking mode = Event(Motion) 50% + Timelapse 50%

    • 32GB : About 16H
    • 64GB : About 32H
    • 128GB : About 64H
    • 256GB : About 128H

  • C = Parking mode(Time Lapse) 100% @1fps

    • 32GB : About 24H
    • 64GB : About 48H
    • 128GB : About 96H
    • 256GB : About 192H

  • D = Parking Impact 50% + Motion 50% @30fps

    • 32GB : About 3H 10Min
    • 64GB : About 6H 20Min
    • 128GB : About 12H 40Min
    • 256GB : About 12H 40Min

  • A+B = Driving mode 50% + Parking mode 50%

    • 32GB : About 9H
    • 64GB : About 18H
    • 128GB : About 36H
    • 256GB : About 72H

  • A+C = Driving mode 50% + Time Lapse 50%

    • 32GB : About 14H
    • 64GB : About 28H
    • 128GB : About 56H
    • 256GB : About 112H
ADVANCED DRIVER ASSISTANCE SYSTEM

ADAS

The IROAD X30 is equipped with the Road Safety Warning System that provides audio and visual alerts for Lane Departure (LDWS), Front Collision (FCWS) and Front Vehicle Departure (FVDW). It detects road markings and gives voice warnings to the drivers if the vehicle begins to stray from its lane or when it is at risk of an imminent crash.
fx_adas_ldws
Lane Departure Warning System

LDWS

LDWS operates in a way that the front camera recognizes the road lane in real time and, if the driver falls asleep while driving or drives poorly, causing the car to depart the lane, it will notify about it through the preset warning sound.

fx_adas_ldws
Front Vehicle Departure Warning

FVDW

When the car is stopped at an intersection or in traffic, FVDW informs the driver when the vehicle in front has started to move, preventing delayed departure.

fx_adas_ldws
Forward Collision Warning System

FCWS

The FCWS function calculates the average distance from the vehicle in front and alerts the driver in advance when reaching the range of safe breaking distance in order to prevent a collision.

fx_adas_ldws
Comprehensive Driving Data Through

Built-in Gps

The GPS data in the IROAD X30 can precisely pinpoint the vehicle’s location and routes on the map, while also displaying the driving speed. This helps to more accurately assess the situation and the circumstances in case of an accident.

footage-1

Wide Viewing Angle

155º WIDE ANGLE LENS

The 155 ° angle lens offer a wide angle of view and minimize blind spots, ensuring all scenes that can be seen through the front windshield are completely recorded.

footage-1

LBP

BATTERY DISCHARGE PREVENTION

In order to protect the vehicle battery from discharging, the dash cam detects when the battery’s voltage drops below a set point and automatically shuts down. The voltage cut-off point can be adjusted from the camera’s Settings.

footage-1

High Durability

HIGH-TEMPERATURE PROTECTION

The IROAD X30 model is built to endure both high and low temperatures in order to keep the device running smoothly. The high-temperature protection function makes the device automatically turn off in case of overheating, protecting both the device and the stored data.

footage-1

Format Free 2.0

HIGH-EFFICIENCY VIDEO CODING FORMAT

The file system improved in stability by utilizing the IVS system. Recordings are automatically saved in a main memory unit and are much safer than previously-used formats. IVS format does not require regular format and automatic rebooting function guarantees the safety of the device and data.

Cloud Connectivity Through Wi-Fi

IROAD Cloud

[COMPATIBILE WITH] IROAD X11 / X30

* Only IROAD Cloud BETA Version is currently available.

Users can watch X30’s live stream and check the vehicle’s location in real time from anywhere at any time, receive push notifications for events during parking, get event videos automatically uploaded to Cloud and download video footage remotely, among others.

*Connecting the dash cam to a mobile hotspot device or a Wi-Fi network with Internet access will consume data.
Carrier/Service Provider charges may apply.

cloud_1 CLOUD – Remote Live View
cloud_1 CLOUD – Push Notifications
cloud_1 CLOUD – Remote Video Playback
cloud_1 CLOUD – Video Backup
cloud_1 CLOUD – GPS Records
cloud_1 CLOUD – Auto Event Upload
